VEVOR 34 Inch Vinyl Cutter: features, specs and who it suits

The VEVOR 34 Inch Vinyl Cutter is a plotter that cuts shapes, lettering and graphics out of adhesive vinyl and similar sheet material. It is aimed at sign making, decals, labels, crafts and heat transfer work, where a design on a computer needs to become a precise cut-out.

How a vinyl cutter works

A vinyl cutter does not print. A small blade is held in a carriage, and the machine moves the material back and forth under it while the carriage moves across, following the vector paths from your design software. The blade cuts the vinyl, leaving the backing paper intact in a "kiss cut", and you then remove the unwanted vinyl in a process called weeding. The result is a clean decal or stencil that can be transferred to a surface.

Cutting width and feed

VEVOR lists a maximum paper feed of 870 mm (34.3 inches) and a maximum cutting width of 780 mm (30.7 inches). The cutting width is smaller than the feed width because the rollers need to grip the edges of the material. A 34-inch machine takes the common 24 inch and 30 inch vinyl rolls, which is enough for vehicle lettering, window graphics and signage. Material length is limited by your space and roll, not by the machine.

Precision and feeding

The listing gives a cutting precision of ±0.01 mm and a feed precision over 3 metres. It describes two double-spring pinch rollers and an aluminium knurled roller that are meant to keep long cuts from drifting sideways. Anyone cutting long banners will care about this, because even a small tracking error grows over distance. Loading the material straight and using the supplied guides is, as a rule, just as important as the machine itself.

Pressure, speed and controls

Blade pressure can be adjusted from 10 to 500 g, and the cutting speed from 10 to 800 mm/s, with an illuminated LCD screen and a control panel for setting them. In general, thin vinyl needs light pressure, and thicker or reflective materials need more. Slower speeds usually help with fine lettering and intricate detail. A test cut on a scrap is a common way to get these settings right for each material.

Connections and software

The cutter has USB and COMPIM (serial) interfaces and supports DM/PL and HP/GL command languages. VEVOR lists compatibility with Windows XP, Vista, 7, 8 and 10 in 32 and 64-bit versions, and states that it is not compatible with Mac. That is the most important line for many buyers. You will also need design or cutting software that can send output to this kind of plotter, so check what your preferred program supports.

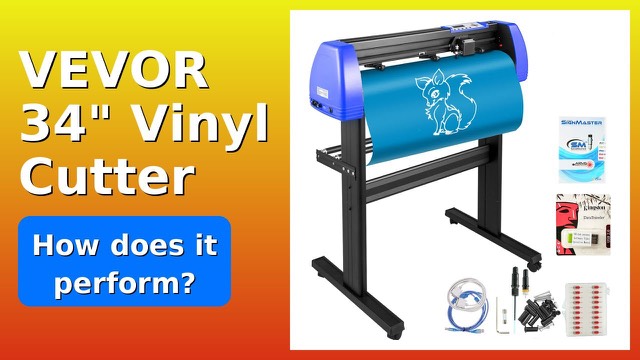

Size and stand

The machine comes with a floor stand and measures about 43.3 x 13.4 x 16.5 inches, with a weight of 30.9 lb. Allow space at the front and back for the material to feed through, which in practice means more than the machine's own footprint.

Who it suits

It suits small sign businesses, makers who sell decals, people who make heat transfer vinyl for clothing, and craft businesses that have outgrown a desktop cutter.

What to check before you buy

• Computer: it needs a Windows PC, and the listing says it does not work with Mac.
• Software: confirm that your design program can output to a plotter of this type.
• Material width: check the vinyl roll widths you plan to use against the 780 mm cutting width.
• Space: allow room for the stand and for the material to feed through.
• Consumables: check which blades are supported and how to replace them.

The short version

• A 34-inch floor-standing vinyl cutter for signs, decals, labels and crafts.
• 870 mm maximum feed and 780 mm maximum cutting width.
• Adjustable pressure of 10-500 g and speed of 10-800 mm/s.
• USB and COMPIM connections; Windows only, not compatible with Mac.
• About 30.9 lb, with a floor stand.
